The Wafer Thinning System Precision Back Grinding Equipment is a high-accuracy wafer processing solution designed for advanced semiconductor manufacturing. It supports 4-inch to 12-inch wafers, including silicon (Si), silicon carbide (SiC), gallium arsenide (GaAs), sapphire, and other brittle compound semiconductor materials.
This system is engineered for ultra-precise wafer backside thinning, enabling thickness reduction to micron and sub-micron levels while maintaining excellent surface integrity. It plays a critical role in advanced packaging, power devices, MEMS, and compound semiconductor fabrication.
By integrating high-rigidity mechanical design, precision Z-axis control, and real-time thickness monitoring, the equipment ensures stable and repeatable processing performance for industrial-scale production.
Key Technical Features
High Precision Thickness Control
- Thickness accuracy: ±1 μm
- Total Thickness Variation (TTV): ≤2 μm
- Advanced models achieve sub-micron control up to ±0.5 μm
Wide Material Compatibility
Supports a wide range of semiconductor and brittle materials:
- Silicon (Si)
- Silicon Carbide (SiC)
- Gallium Arsenide (GaAs)
- Sapphire (Al₂O₃)
- Other compound semiconductor wafers
Wafer Size Compatibility
- 4-inch / 6-inch / 8-inch / 10-inch / 12-inch wafers
- Flexible handling for both standard and customized substrates
High Stability Mechanical System
- High-rigidity air-bearing spindle
- Low-vibration precision grinding platform
- Imported ball screw + linear guide system
- High-precision servo motor control (0.1 μm resolution)
Advanced Cooling System
- Water-cooled spindle system ensures thermal stability
- Prevents deformation during high-speed grinding
System Configuration
The wafer thinning system integrates multiple functional modules:
1. Precision Grinding Module
Performs controlled material removal with high surface uniformity.
2. Z-axis Precision Control System
Enables ultra-fine vertical adjustment for consistent wafer thickness.
3. Thickness Measurement System
Real-time contact/non-contact measurement ensures process stability.
4. Vacuum Wafer Chuck
Secure wafer fixation, including customized solutions for irregular wafers.
5. Automation Control System
- Full-auto / Semi-auto operation modes
- Operation log recording
- Recipe-based process control
Processing Capabilities
The system is designed for high-performance wafer backside processing:
- Silicon wafer back grinding
- SiC wafer thinning for power devices
- GaN and GaAs substrate thinning
- Sapphire wafer precision thinning
- Ultra-thin wafer preparation for 3D packaging

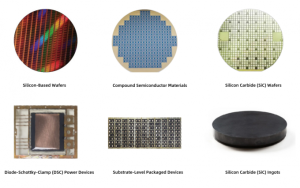

Applications
1. Power Semiconductor Devices
Used in SiC MOSFETs, IGBTs, and high-voltage devices requiring ultra-thin wafers.
2. Advanced Packaging
Supports wafer thinning for:
- Flip-chip packaging
- 2.5D / 3D IC integration
- TSV (Through Silicon Via) processes
3. Compound Semiconductors
Applicable to GaN, GaAs, and InP device fabrication.
4. LED and Optoelectronics
Sapphire and compound wafer thinning for LED chips and optical devices.
Advantages
- Mature and stable wafer thinning technology
- High precision in-feed grinding system
- Excellent surface roughness control
- High UPH (up to 30 wafers/hour for standard processes)
- Strong adaptability for brittle and hard materials
- Fully automated process integration capability
Performance Highlights
- Minimum resolution: 0.1 μm/s Z-axis control
- Thickness uniformity: ≤1–2 μm TTV
- High-speed spindle with ultra-low vibration
- Real-time process monitoring and logging
- Compatible with both R&D and mass production environments
Customization Options
We provide flexible customization for different industrial needs:
- Custom wafer chucks (irregular shapes)
- Extended thickness measurement range (up to 40 mm)
- Process recipe customization
- Automation integration with upstream/downstream equipment
FAQ
Q1: Can this system process SiC wafers?
Yes, it is specifically optimized for SiC wafer thinning and backside grinding, suitable for power device applications.
Q2: What is the achievable thickness accuracy?
Standard models achieve ±1 μm, and high-end configurations can reach ±0.5 μm with TTV ≤1 μm.
Q3: Does it support full automation?
Yes, both full-auto and semi-auto modes are available depending on production requirements.
