Flatness as a Critical Parameter in SiC Wafer Manufacturing
In silicon carbide (SiC) power device fabrication, wafer flatness is not merely an auxiliary metric; it is a fundamental quality indicator that directly impacts subsequent epitaxy, photolithography, etching, and metallization processes.
Whether it is 4H-SiC or 6H-SiC, and regardless of wafer size—6-inch, 8-inch, or larger—insufficient flatness inevitably reduces process yield and complicates device fabrication.
Compared with silicon wafers, SiC presents unique challenges due to its high hardness, brittleness, high elastic modulus, and limited material removal allowance. These characteristics make the wafer highly sensitive to global bow, warp, and local thickness variation (TTV) during processing. Controlling flatness is therefore a systemic challenge spanning multiple processes, equipment, and material properties.
1. Definitions and Metrics of Wafer Flatness
Before analyzing process influences, it is important to clarify commonly used flatness metrics:
- TTV (Total Thickness Variation): Difference between maximum and minimum wafer thickness
- Warp: Overall deviation of the wafer from a reference plane in its free state
- Bow: Central displacement relative to the average edge plane
- Site Flatness: Local surface height variation within a defined area
In device manufacturing, site flatness and global warp are particularly critical for photolithography. Importantly, the flatness outcomes in later processes are largely determined during slicing and early mechanical processing.
2. Slicing: The Origin of Flatness Challenges
2.1 Internal Stress and Crystal Orientation
Residual stress within SiC crystals arises during bulk growth due to:
- Axial and radial temperature gradients
- Non-uniform compositional distribution
- Thermal stresses from solidification
Slicing the ingot into wafers releases and redistributes these stresses, often causing initial warp or bow.
Crystal off-axis orientation also significantly affects flatness: wafers with larger off-axis angles exhibit stronger anisotropic mechanical responses, which narrows the acceptable slicing process window.
2.2 Slicing Method and Initial Surface Morphology
Diamond wire sawing is the predominant method for SiC wafer slicing. While it reduces kerf loss and improves efficiency, it introduces flatness challenges:
- Wire tension instability → periodic surface waviness
- Non-uniform feed rates → thickness gradients
- Wire wear → localized TTV increase
Errors introduced during slicing cannot be entirely corrected in subsequent processes; instead, they may be amplified or inherited.
3. Grinding: Controlling Macroscopic Flatness
3.1 Double-Side Grinding
Double-side grinding (DSG) or lapping is the key process for controlling global wafer flatness (warp, bow, TTV). Factors affecting grinding outcomes include:
- Parallelism of top and bottom platens
- Pressure distribution across the wafer carrier
- Abrasive particle size and uniformity
- Wafer clamping method and degree of freedom
Improper grinding can leave residual stress that cannot be corrected by subsequent polishing.
3.2 Material Removal Strategy and Stress Redistribution
SiC’s high hardness limits material removal, making removal distribution critical:
- Uneven removal → residual stress remains
- Excessive single-side removal → new stress introduced
A staged, symmetric grinding approach gradually reduces internal stress and improves flatness, rather than attempting to reach the target thickness in a single step.

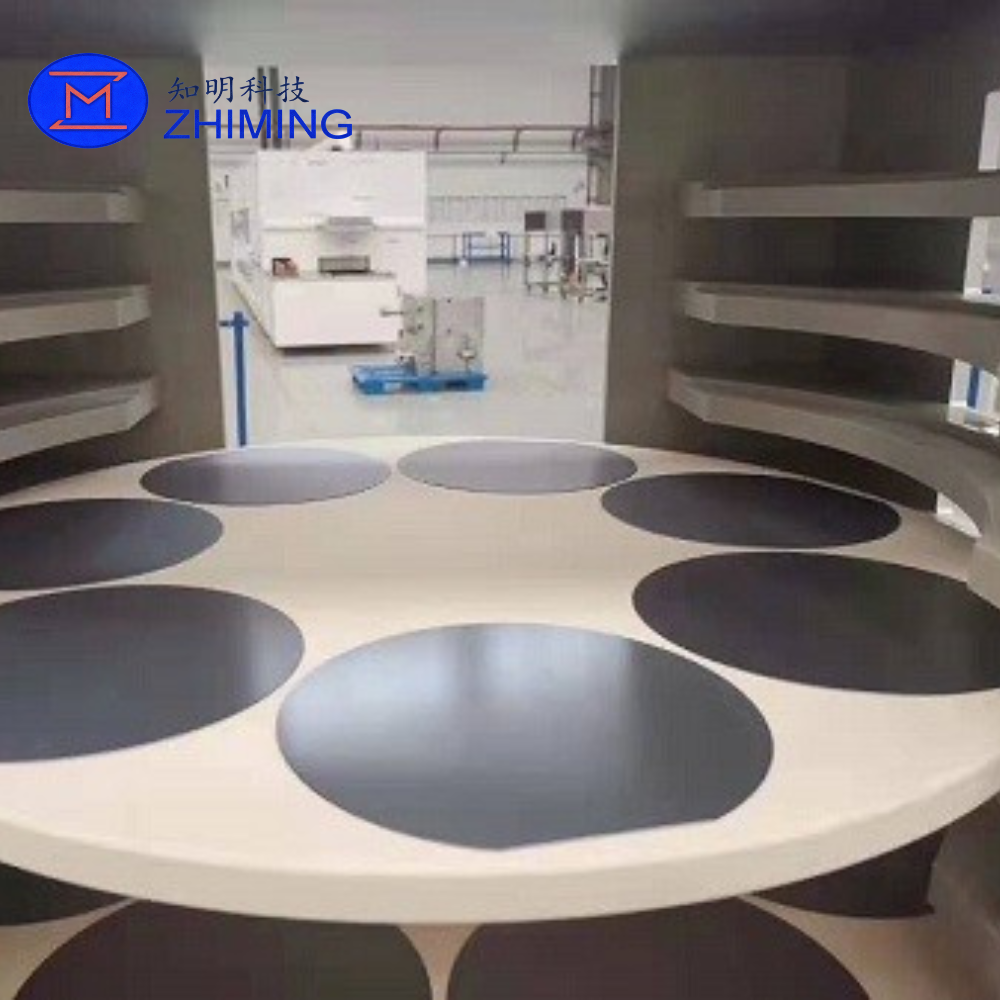

4. Polishing: Local Flatness and Surface Quality
4.1 CMP Is Not a Global Fix
Chemical mechanical polishing (CMP) is effective for surface roughness reduction, but in SiC wafers:
- Chemical contribution to material removal is limited due to SiC inertness
- Removal rates are low, insufficient for correcting large-scale warp
- CMP mainly addresses site flatness rather than global warp
Thus, CMP cannot compensate for improper slicing or grinding.
4.2 Polishing Parameters and Indirect Effects
CMP parameters influence flatness indirectly:
- Pad hardness affects local pressure distribution
- Polishing slurry chemistry affects removal uniformity
- Wafer support design affects edge roll-off
For large-diameter wafers (e.g., 8-inch), edge flatness control is often more challenging than central flatness.
5. System-Level Influences
Beyond individual processes, flatness is affected by:
- Equipment thermal stability
- Spindle and platen rigidity
- Wafer holding method (vacuum vs. mechanical)
- Batch-to-batch process consistency
Flatness issues are often a cumulative effect of system-level variations rather than a single process failure.
6. Process Optimization Trends
As wafer diameters increase, the industry is shifting from corrective approaches to front-end flatness control:
- Reducing residual stress during crystal growth
- Optimizing slicing tension and feed control
- Enhancing symmetry and controllability during grinding
- Implementing data-driven closed-loop process optimization
In modern SiC manufacturing, flatness is no longer a single-process metric but a reflection of the entire manufacturing chain.
Conclusion: Flatness as a Measure of Process Understanding
Controlling SiC wafer flatness is not about “polishing more” but about understanding the interplay of material properties, mechanical behavior, and process systems.
Every stage—from slicing to grinding to polishing—contributes to the final flatness outcome. High-quality SiC wafers are designed to achieve flatness through proper front-end process control, rather than relying on downstream correction.
This systemic perspective distinguishes SiC wafer processing from conventional silicon wafer processing and underscores the importance of process-aware engineering in modern power electronics manufacturing.
