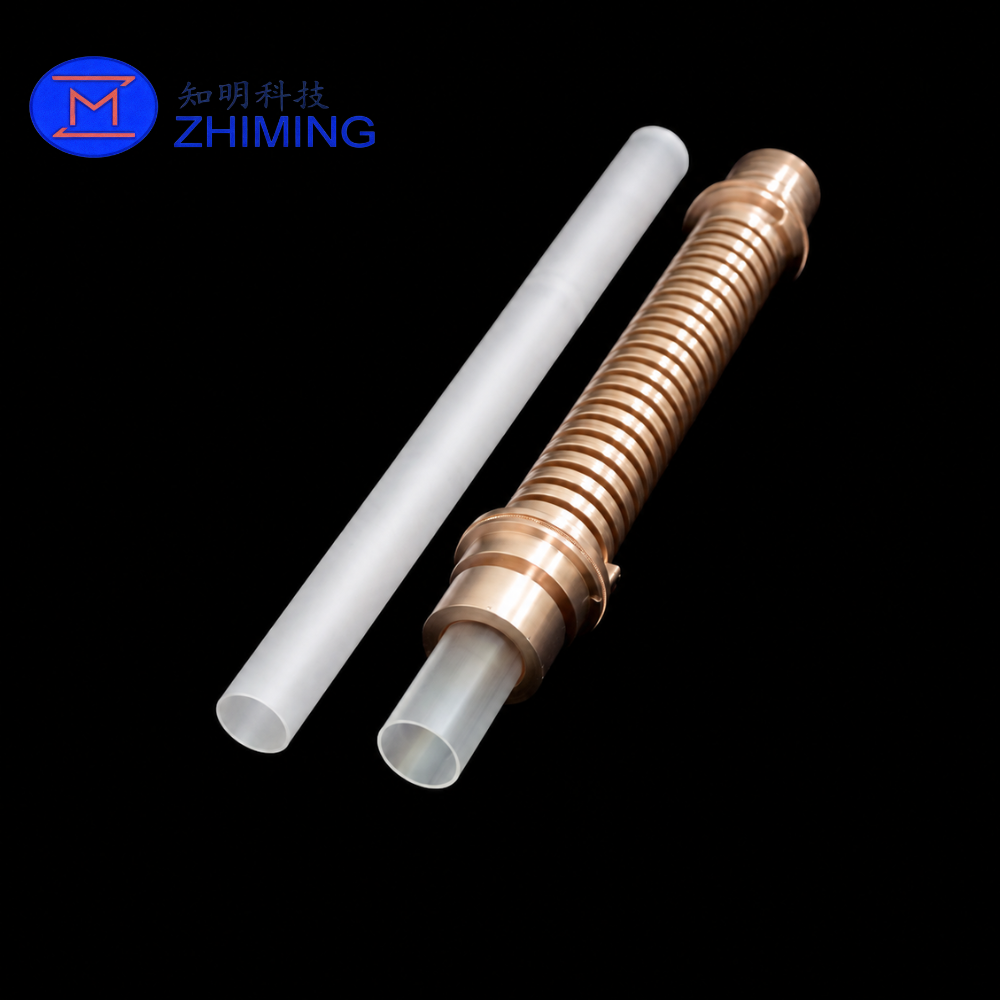

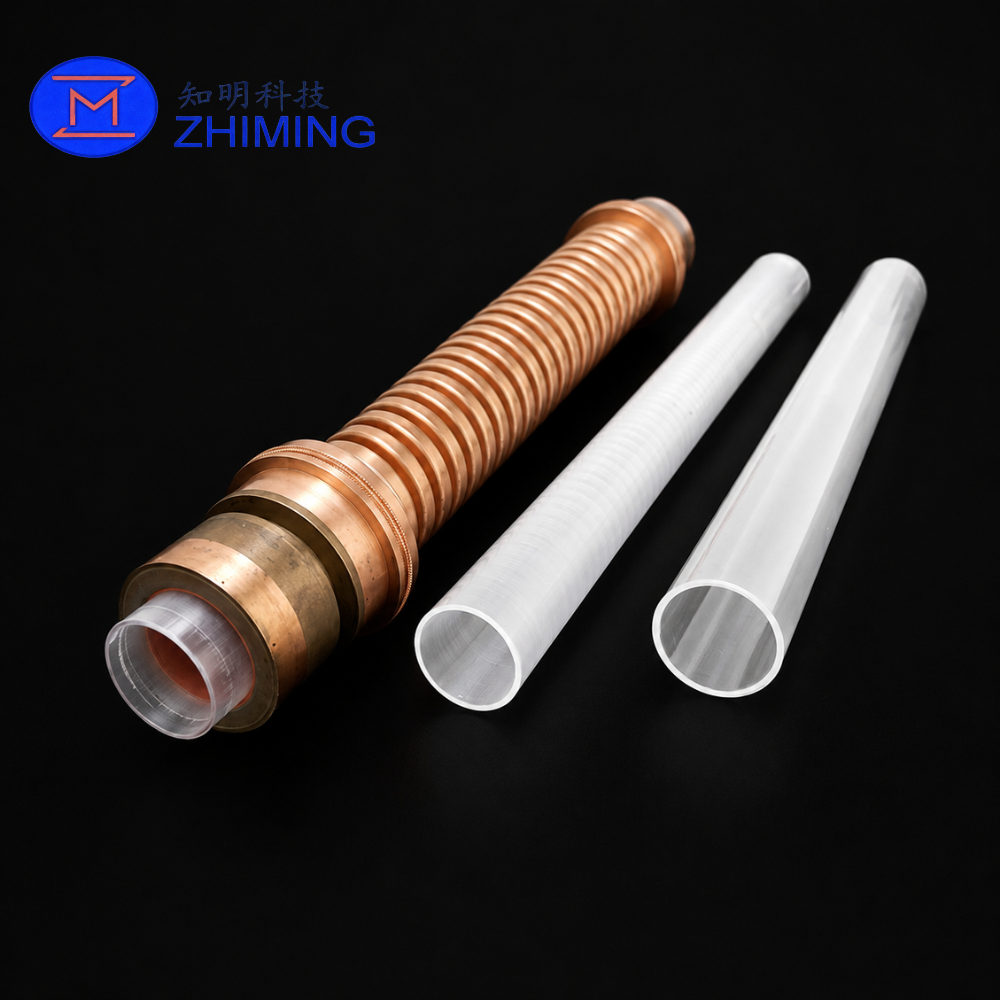

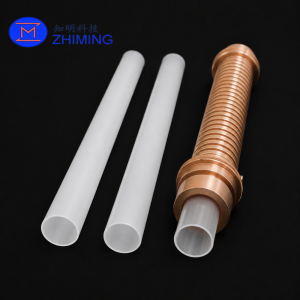

The sapphire applicator tube assembly is a precision component used in semiconductor equipment where plasma generation, gas activation or chamber cleaning requires a stable and durable tube structure. In these applications, the tube must withstand exposure to reactive gases, elevated temperatures and harsh operating conditions while maintaining reliable dimensional performance.
Sapphire is a preferred material for these demanding environments because it combines high hardness, excellent heat resistance, good dielectric performance and strong chemical stability. When integrated into a metal assembly, the result is a practical solution for semiconductor equipment refurbishment, replacement and localized sourcing.
Our product can be supplied as:
- A single sapphire tube
- A sapphire tube with metal housing
- A complete applicator tube assembly
- A custom replacement part based on sample or drawing
This makes it suitable for both OEM projects and aftermarket semiconductor equipment support.
Klíčové vlastnosti
1. High-Purity Sapphire Material
The tube section is manufactured from synthetic sapphire for high-performance industrial use. Sapphire is widely used in semiconductor systems because of its excellent material properties, including:
- Odolnost vůči vysokým teplotám
- Vynikající chemická stabilita
- Strong wear resistance
- Vysoká tvrdost
- Good electrical insulation
- Long service life in harsh environments
2. Suitable for Plasma and Semiconductor Equipment
This product is designed for use in semiconductor and plasma-related systems where reliability and consistency are important. It is especially suitable for:
- Remote plasma source systems
- Chamber cleaning modules
- Plasma gas activation assemblies
- Zařízení pro výrobu polovodičů
- Equipment maintenance and replacement projects
3. Precision Machined Metal Housing
The metal section of the assembly can be customized to match the original equipment structure. Machined features may include:
- External threads
- Stepped diameters
- Sealing positions
- Mounting shoulders
- Grooves
- Custom interfaces
- Integrated housing structures
4. OEM Replacement and Reverse Engineering Support
If the original supplier is difficult to source or lead times are too long, we can help manufacture alternative parts based on:
- Technical drawings
- Product photos
- Used samples
- Existing assemblies
- Critical dimensions
- OEM reference information
5. Customizable Tube Geometry
We can manufacture customized sapphire tubes according to your application requirements, including:
- Vnější průměr
- Vnitřní průměr
- Tube length
- Wall thickness
- End shape
- Povrchová úprava
- Straightness and dimensional tolerance requirements
Typické aplikace
Our sapphire applicator tube assemblies are commonly used in the following fields:
- Zařízení pro výrobu polovodičů
- Plasma cleaning systems
- Remote plasma generators
- Dry process equipment
- Gas excitation systems
- CVD and PECVD related applications
- Equipment refurbishment and spare parts replacement
- Industrial plasma processing systems
Material Advantages of Sapphire
Compared with ordinary glass or conventional ceramic tube materials, sapphire provides a more robust solution for certain high-demand semiconductor applications.
Why sapphire?
- Better resistance to thermal load
- Vynikající rozměrová stabilita
- Improved resistance to chemical attack
- Good dielectric characteristics
- Suitable for harsh process conditions
- High mechanical strength
These advantages make sapphire an excellent choice for specialized plasma applicator and semiconductor equipment components.
Custom Manufacturing Capability
We provide flexible manufacturing support for B2B customers and equipment buyers.
Custom options include:
Sapphire Tube Customization
- ID / OD customization
- Length customization
- Tube wall thickness adjustment
- Special tube end design
- Smooth or precision-finished surfaces
Metal Assembly Customization
- Copper, alloy or other metal structures
- Threaded housing
- Mounting sections
- Structural adaptation to original equipment
- Custom machining according to drawings
Complete Assembly Support
- Sapphire + metal integration
- Small-batch or trial production
- Stable production for long-term supply
- Sample-based duplication
Technické parametry produktu
| Položka | Popis |
|---|---|
| Product Name | Sapphire Applicator Tube Assembly |
| Main Material | Synthetic Sapphire |
| Assembly Type | Sapphire Tube / Sapphire + Metal Housing |
| Tube Shape | Cylindrical Hollow Tube |
| Tube OD | Custom |
| Tube ID | Custom |
| Tube Length | Custom |
| Wall Thickness | Custom |
| Povrchová úprava | As required |
| Metal Structure | Dostupné na |
| Aplikace | Semiconductor Plasma Equipment |
| OEM Replacement | Supported |
| Drawing-Based Production | Supported |
| Sample-Based Production | Supported |
Note: All specifications can be customized according to customer drawings, samples and actual equipment requirements.
Kontrola kvality
To ensure stable performance and reliable assembly matching, inspection can be carried out based on customer requirements, including:
- Kontrola rozměrů
- Tube OD and ID measurement
- Wall thickness check
- Visual inspection
- Surface defect inspection
- Assembly fit check
- Packaging inspection
Inspection reports can be provided if required.
What We Need for Quotation
To help us quote faster and more accurately, please provide as much of the following information as possible:
- Product drawing or sketch
- Tube outer diameter
- Tube inner diameter
- Tube length
- Wall thickness
- Metal assembly structure
- Equipment model
- Application environment
- Quantity required
- Photos or samples
- OEM reference number, if available
If you do not have a drawing, you can still send photos and key dimensions for preliminary evaluation.
Why Choose Us
- Experience with semiconductor material components
- Support for custom sapphire parts
- OEM replacement capability
- Sample-based manufacturing support
- Flexible quantity options
- Responsive engineering communication
- Suitable for both prototype and production demand
ČASTO KLADENÉ DOTAZY
Can you produce the complete sapphire applicator tube assembly?
Yes. We can provide both the sapphire tube itself and the complete assembly with matching metal components.
Do you support custom dimensions?
Yes. All main dimensions, including OD, ID, length and wall thickness, can be customized.
Can you manufacture based on a sample only?
Yes. If you can provide a sample, photos or key dimensions, we can evaluate feasibility and prepare a quotation.
Is this suitable for semiconductor equipment replacement?
Yes. This product is suitable for semiconductor equipment maintenance, replacement and refurbishment projects.
Do you accept small quantity orders?
Yes. Prototype and small-batch orders can be evaluated depending on the structure and production difficulty.
Request a Quote for Custom Sapphire Applicator Tube Assembly for Remote Plasma Systems
Tell us your required specifications, dimensions, quantity, application and technical requirements. You can also provide drawings or additional project information. Our technical team will review your requirements and reply as soon as possible.
